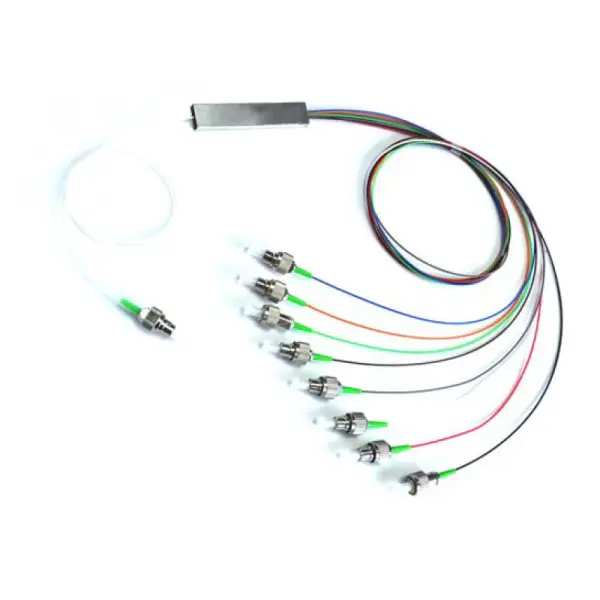

Splitter ( Coupler )
FBT Splitter ( Coupler )
FBT Technology MM OM3 850nm Coupler
Datasheet Download
FBT Technology SM 1310 / 1550nm Dual Window Coupler
Datasheet Download
| Inquiry | Specification | Product features | Download | |
|---|---|---|---|---|
| FBT Technology MM OM3 850nm CouplerParameterPremiumStandard Operating Wavelength850nm850nm Port Configuration1x2 or 2x21x2 or 2x2 Typical Excess Loss ( dB )0.71.0 Max. Insertion Loss ( Without Connector )( dB )4.65.0 Uniformity ( 50/50 ) (dB )≦0.7≦1.0 Directivity ( dB )>=55>=55 Thermal Stability ( dB )≦0.25≦0.25 Operating Temperature ( with Hytrel Cable )-40°C to +85°C-40°C to +85°C Storage Temperature ( with Hytrel Cable )-40°C to +85°C-40°C to +85°C Package Dimensions ( mm )A ( 250mm ): 3.0(OD) x 54(L) B ( 0.9mm ): 3.0(OD) x 60(L) C (3.0 or 0.9mm ): 98(L) x 14(W) x 8.5(H)A ( 250mm ): 3.0(OD) x 54(L) B ( 0.9mm ): 3.0(OD) x 60(L) C (3.0 or 0.9mm ): 98(L) x 14(W) x 8.5(H) Note: All the data above does not include connectors.FBT Technology SM 1310 / 1550nm Dual Window CouplerParameterPremiumStandard Operating Wavelength1310 / 1550±40nm1310 / 1550±40nm Port Configuration1x2 or 2x21x2 or 2x2 Typical Excess Loss ( dB )0.10.15 Max. Insertion Loss ( Without Connector )( dB )3.63.8 Uniformity ( 50/50 ) (dB )≦0.7≦1.0 Polarization Dependent Loss* ( dB )≦0.10≦0.15 Directivity ( dB )>=50>=50 Thermal Stability ( dB )≦0.25≦0.25 Operating Temperature ( with Hytrel Cable )-40°C to +85°C-40°C to +85°C Storage Temperature ( with Hytrel Cable )-40°C to +85°C-40°C to +85°C Package Dimensions ( mm )A ( 250µm ): 3.0(OD) x 54(L)B ( 0.9mm ): 3.0(OD) x 60(L)C (3.0 or 0.9mm ): 98(L) x 14(W) x 8.5(H)A ( 250µm ): 3.0(OD) x 54(L)B ( 0.9mm ): 3.0(OD) x 60(L)C (3.0 or 0.9mm ): 98(L) x 14(W) x 8.5(H) Note: All the data above does not include connectors. | CATVFiber SensorTest InstrumentsFTTH, FTTBLocal Area NetworkOptical communication systems | |||
| 1xN SplitterParameter1×21×41×81×161×321×641×128 Operating Wavelength1260～1650nm1260～1650nm1260～1650nm1260～1650nm1260～1650nm1260～1650nm1260～1650nm Fiber TypeDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specified Channel Passband (@-0.5dB bandwidth) Min.(nm)3.8 /4.07.2/7.410.3/10.513.5/13.716.5/16.920.5/21.023.8/24.2 Max. Loss Uniformity (dB)0.40.60.81.21.52.02.5 Max. Polarization Dependent Loss (dB)0.10.10.10.20.250.30.4 Return Loss (dB)≦-55≦-55≦-55≦-55≦-55≦-55≦-55 Directivity (dB)≦-55≦-55≦-55≦-55≦-55≦-55≦-55 Temperature Stability (-40～85°C)(dB)≦0.3≦0.3≦0.3≦0.5≦0.5≦0.5≦0.5 Operating Temperature-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C Storage Temperature-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C 2xN SplitterParameter2×22×42×82×162×322×642×128 Operating Wavelength1260～1650nm1260～1650nm1260～1650nm1260～1650nm1260～1650nm1260～1650nm1260～1650nm Fiber TypeDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specified Channel Passband (@-0.5dB bandwidth) Min.(nm)3.9/4.27.3/7.610.5/11.014.4/14.617.4/17.921.0/21.524.5/25.0 Max. Loss Uniformity (dB)0.61.01.21.51.82.22.5 Max. Polarization Dependent Loss (dB)0.20.20.20.30.30.30.4 Return Loss (dB)≦-55≦-55≦-55≦-55≦-55≦-55≦-55 Directivity (dB)≦-55≦-55≦-55≦-55≦-55≦-55≦-55 Temperature Stability (-40～85°C)(dB)≦0.4≦0.4≦0.4≦0.5≦0.5≦0.5≦0.5 Operating Temperature-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C Storage Temperature-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C * S/P : ‘S’ means ‘Standard Grade’, and, ‘P’ means Premium Grade* IL values are measured @1310&1550nm* IL, PDL, Uniformity values are for “Without connectors” | FTTx DeploymentPassive Optical Networks ( PON )Access / Metro NetworkBroadband / CATV SystemTest Equipment | Low Insertion Loss and PDLUniform Power SplittingCompact Package for High Density applicationCompliant with Telcordia GR-1209-CORE & GR-1221-COREBend Insensitive G.657A1 FiberHigh Polarization Extinction Ratio & Excellent UniformitySupporting Industrial Standard available |  |
