1X9

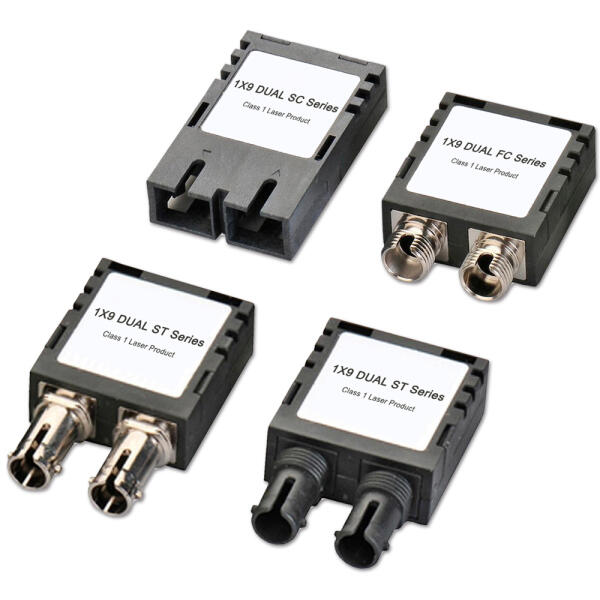

1.25G 1X9-Duplex

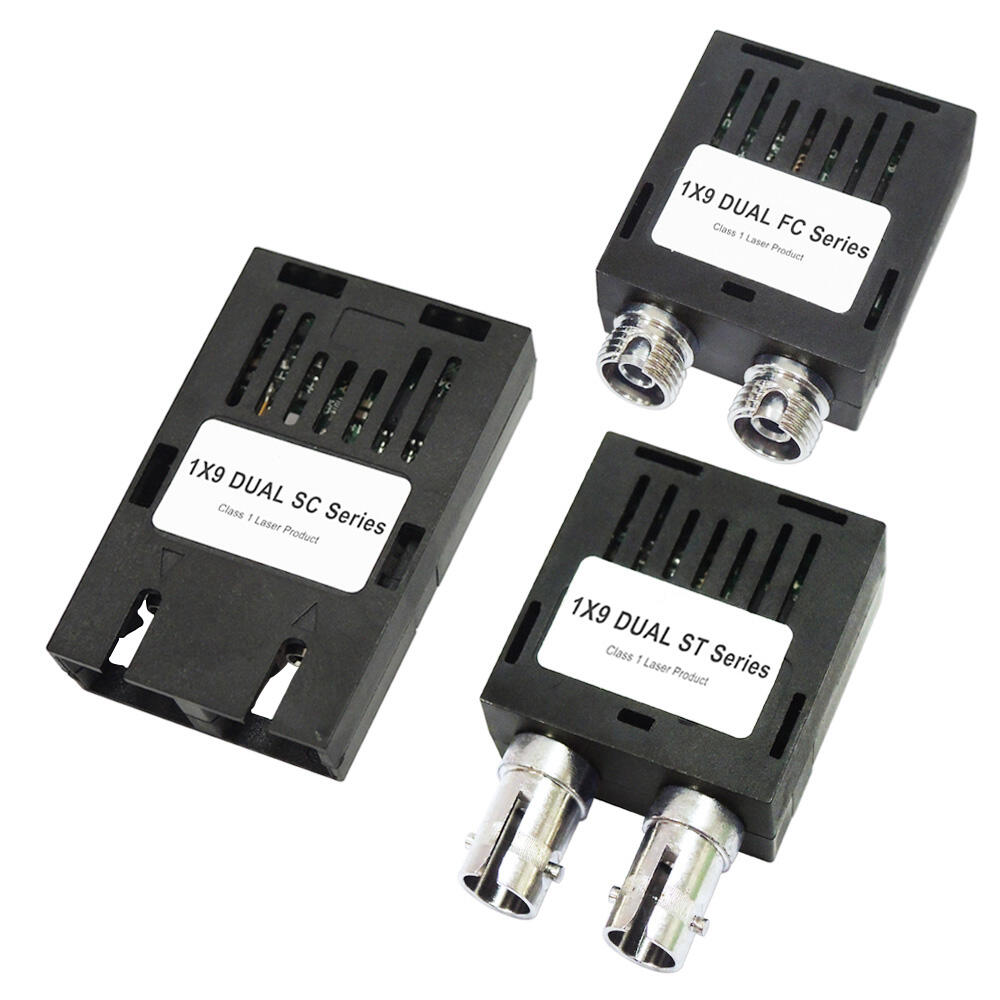

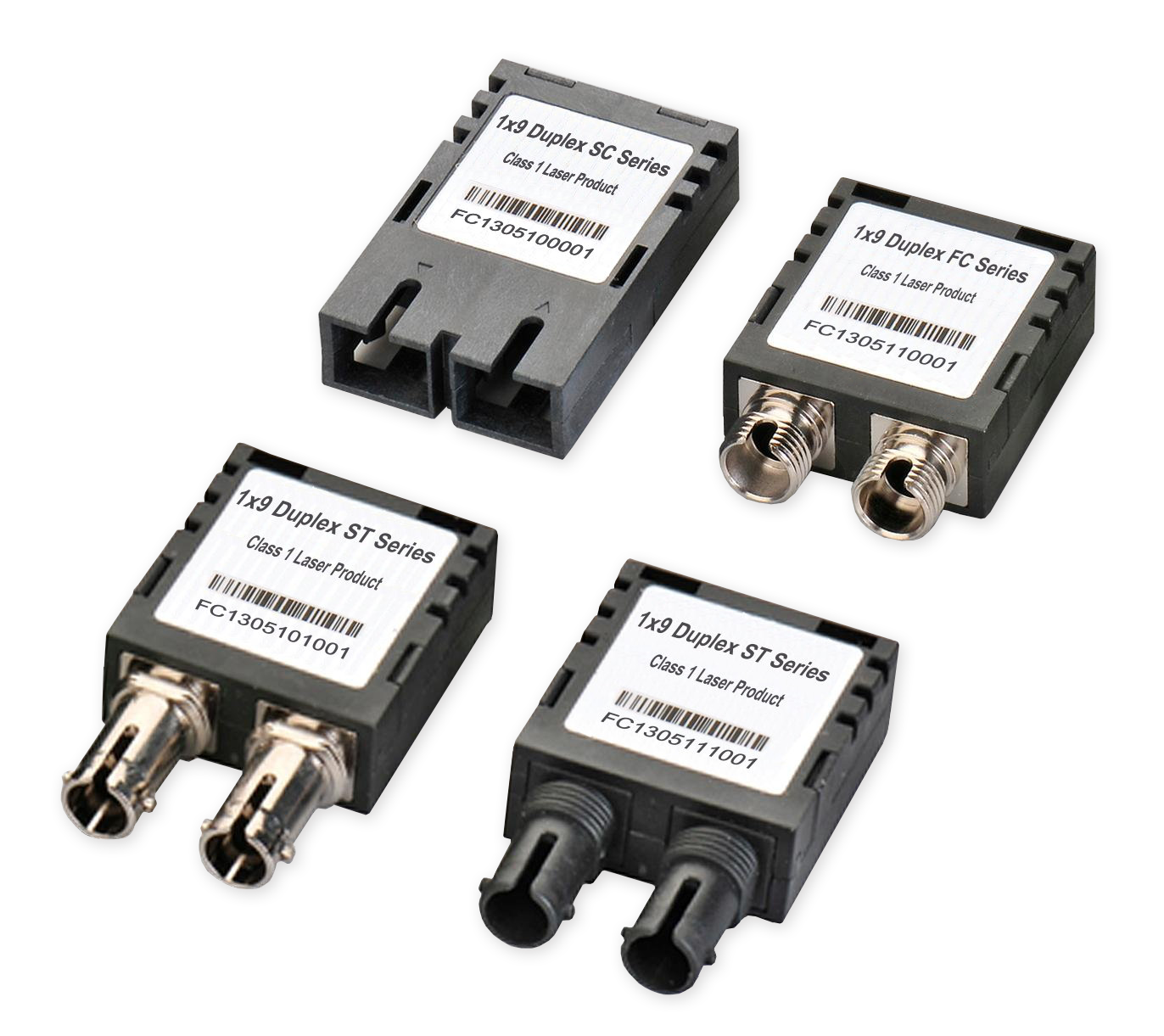

1.25G Gigabit Ethernet 1X9 Transceiver
Duplex SC / FC / ST(plastic) / ST(metal), 850nm / 1310nm / 1550nm, Multi-Mode / Single Mode, 550M~120KM
SC Connector
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| F1X9-C1-M85-X5 | 1.25G | 850nm | Duplex SC | OM2 550m | 0~70°C | 1X9-1000SX-SC | |
| F1X9-C1-M85-X5P | 1.25G | 850nm | Duplex SC | OM2 550m | 0~70°C | 1X9-1000SX-SC, SD=LVPECL | |
| F1X9-C1-M85-X5Pi | 1.25G | 850nm | Duplex SC | OM2 550m | -40~85°C | 1X9-1000SX-SC, SD=LVPECL, I-Temp | |
| F1X9-C1-M85-X5T | 1.25G | 850nm | Duplex SC | OM2 550m | 0~70°C | 1X9-1000SX-SC, SD=TTL | |
| F1X9-C1-M85-X5Ti | 1.25G | 850nm | Duplex SC | OM2 550m | -40~85°C | 1X9-1000SX-SC, SD=LVTTL, I-Temp | |
| F1X9-C1-S13-10 | 1.25G | 1310nm | Duplex SC | SM 10km | 0~70°C | 1X9-1000LX10-SC | |
| F1X9-C1-S13-10Pi | 1.25G | 1310nm | Duplex SC | SM 10km | -40~85°C | 1X9-1000LX-SC, SD=LVPECL, I-Temp | |
| F1X9-C1-S13-10Ti | 1.25G | 1310nm | Duplex SC | SM 10km | -40~85°C | 1X9-1000LX-SC, SD=LVTTL, I-Temp | |
| F1X9-C1-S13-20 | 1.25G | 1310nm | Duplex SC | SM 20km | 0~70°C | 1X9-1000LX20-SC | |
| F1X9-C1-S13-20Ti | 1.25G | 1310nm | Duplex SC | SM 20km | -40~85°C | 1X9-1000LX20-SC, SD=LVTTL, I-Temp | |
| F1X9-C1-S13-30Ti | 1.25G | 1310nm | Duplex SC | SM 30km | -40~85°C | 1X9-1000LHX30-SC, SD=LVTTL, I-Temp | |
| F1X9-C1-S13-40 | 1.25G | 1310nm | Duplex SC | SM 40km | 0~70°C | 1X9-1000LHX40-SC | |
| F1X9-C1-S13-40Ti | 1.25G | 1310nm | Duplex SC | SM 40km | -40~85°C | 1X9-1000LHX40-SC, SD=LVTTL, I-Temp | |
| F1X9-C1-S15-80 | 1.25G | 1550nm | Duplex SC | SM 80km | 0~70°C | 1X9-1000ZX-SC | |
| F1X9-C1-S15-A2 | 1.25G | 1550nm | Duplex SC | SM 120km | 0~70°C | 1X9-1000EZX-SC |
FC Connector
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| F1X9-C3-M85-X5 | 1.25G | 850nm | Duplex FC | MM 550m | 0~70°C | 1X9-1000SX-FC | |
| F1X9-C3-M85-X5T | 1.25G | 850nm | Duplex FC | OM2 550m | 0~70°C | 1X9-1000SX-SC, SD=TTL | |
| F1X9-C3-M85-X5Ti | 1.25G | 850nm | Duplex FC | OM2 550m | -40~85°C | 1X9-1000SX-SC, SD=TTL, I-Temp | |
| F1X9-C3-S13-10 | 1.25G | 1310nm | Duplex FC | SM 10km | 0~70°C | 1X9-1000LX10-FC | |
| F1X9-C3-S13-20 | 1.25G | 1310nm | Duplex FC | SM 20km | 0~70°C | 1X9-1000LX20-FC | |
| F1X9-C3-S13-40 | 1.25G | 1310nm | Duplex FC | SM 40km | 0~70°C | 1X9-1000LHX40-FC | |
| F1X9-C3-S15-80 | 1.25G | 1550nm | Duplex FC | SM 80km | 0~70°C | 1X9-1000ZX-FC | |
| F1X9-C3-S15-A2 | 1.25G | 1550nm | Duplex FC | SM 120km | 0~70°C | 1X9-1000EZX-FC |

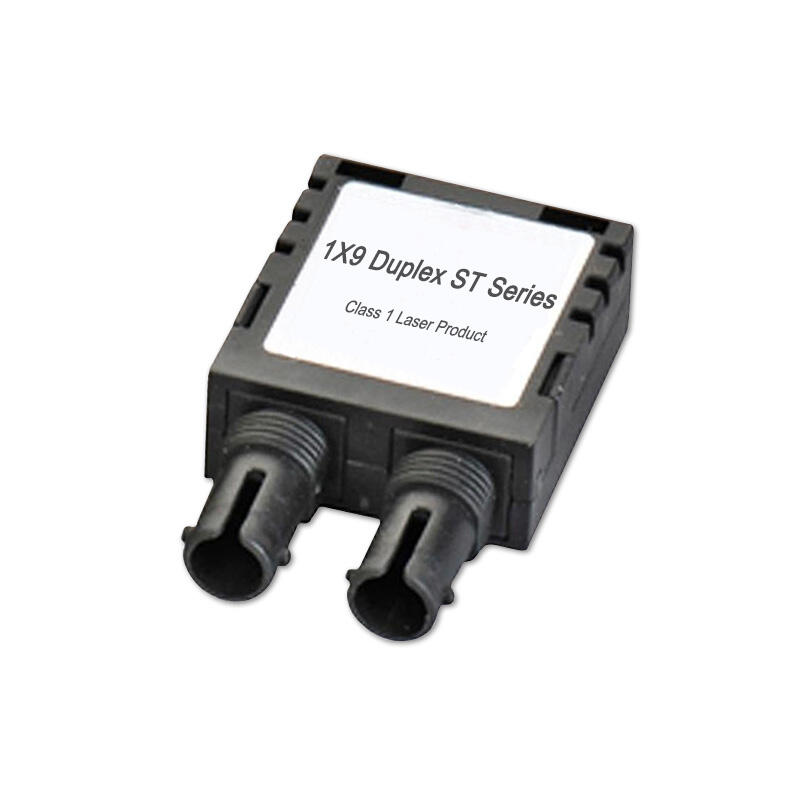

ST Connector (plastic)
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | |
|---|---|---|---|---|---|---|---|
| F1X9-C5-M85-X5 | 1.25G | 850nm | Duplex ST | OM2 550m | 0~70°C | 1X9-1000SX-ST | |
| F1X9-C5-S13-10 | 1.25G | 1310nm | Duplex ST | SM 10km | 0~70°C | 1X9-1000LX10-ST | |
| F1X9-C5-S13-20 | 1.25G | 1310nm | Duplex ST | SM 20km | 0~70°C | 1X9-1000LX20-ST | |
| F1X9-C5-S13-40 | 1.25G | 1310nm | Duplex ST | SM 40km | 0~70°C | 1X9-1000LHX40-ST | |
| F1X9-C5-S15-80 | 1.25G | 1550nm | Duplex ST | SM 80km | 0~70°C | 1X9-1000ZX-ST | |
| F1X9-C5-S15-A2 | 1.25G | 1550nm | Duplex ST | SM 120km | 0~70°C | 1X9-1000EZX-ST |
ST Connector (metal)
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| F1X9-CM-M85-X5 | 1.25G | 850nm | Duplex ST | OM2 550m | 0~70°C | 1X9-1000SX-ST | |
| F1X9-CM-M85-X5T | 1.25G | 850nm | Duplex ST | OM2 550m | 0~70°C | 1X9-1000SX-SC, SD=TTL | |
| F1X9-CM-M85-X5Ti | 1.25G | 850nm | Duplex ST | OM2 550m | -40~85°C | 1X9-1000SX-SC, SD=TTL, I-Temp | |
| F1X9-CM-S13-10 | 1.25G | 1310nm | Duplex ST | SM 10km | 0~70°C | 1X9-1000LX10-ST | |
| F1X9-CM-S13-20 | 1.25G | 1310nm | Duplex ST | SM 20km | 0~70°C | 1X9-1000LX20-ST | |
| F1X9-CM-S13-40 | 1.25G | 1310nm | Duplex ST | SM 40km | 0~70°C | 1X9-1000LHX40-ST | |
| F1X9-CM-S15-80 | 1.25G | 1550nm | Duplex ST | SM 80km | 0~70°C | 1X9-1000ZX-ST | |
| F1X9-CM-S15-A2 | 1.25G | 1550nm | Duplex ST | SM 120km | 0~70°C | 1X9-1000EZX-ST |
- Gigabit Ethernet 1000BASE-SX @1.25G
- Fiber Channel 1GFC @1.0625G
- Compliant with IEEE802.3z Gigabit Ethernet
- Compliant with Fiber Channel 100-M5-SN-I
- Industry Standard 1x9 Footprint
- 850nm/1310nm/1550nm laser transmitter
- Dual SC/FC/ST(plastic)/ST(metal) connector
- Single 3.3V or 5V Power Supply
- DC-coupled Differential PECL inputs and outputs
- LVPECL / PECL Signal Detection Output
- Wave Solderable and Aqueous Washable
- Link distance 500m~120km over MM/SM fiber
- RoHS Compliant
