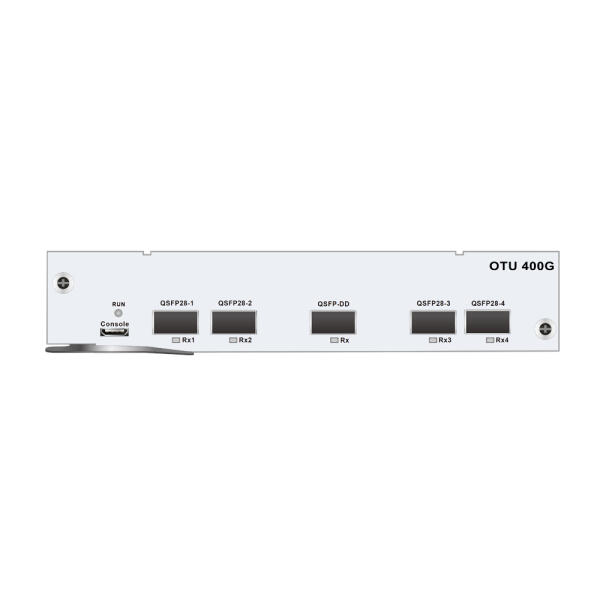

F520 400G OTU (400G Muxponder, QSFP28 to QSFP56-DD)
F520 400G Muxponder 4*100G QSFP28 to 1*400G QSFP56-DD
Features:
- Client side: 4*100G QSFP28
- Line side: 1*400G QSFP56-DD
- Dispersion Tolerance up to 20000ps/nm @400G (depends on QSFP56-DD DCO module)
- Support Line-side Multi-Rate 100/200/300/400G (depends on QSFP56-DD DCO module)
- Support Line-side oFEC
- Support Client-side 100GE RS(528,514) FEC
- Support adjustable wavelength with QSFP56-DD DCO module
- Support adjustable output power with QSFP56-DD DCO module
- Support OSNR real-time monitoring with QSFP56-DD DCO module
- Support port Loopback test
- Hot Swap
- Real-Time DDM
- Support ALS (Automatic Laser
| Inquiry | Parameter | Technical indicators | Download |
|---|---|---|---|
Data Rate QSFP56-DD DCO DWDM Wavelength Interface Type│Client Side Interface Type│Line Side Management Power Consumption Size Operating Temperature Storage Temperature Relative Humidity (no condensation) | 100 / 200 / 300 / 400Gbps 1529.5 ~ 1565.50nm 4*100G QSFP28 1*400G QSFP56-DD TELNET, SNMP, WEB < 50W 191(W) x 253(D) x 41(H)mm -10 ~ 60˚C -40 ~ 70˚C 5 ~ 95RH% |  |
