| | | Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|

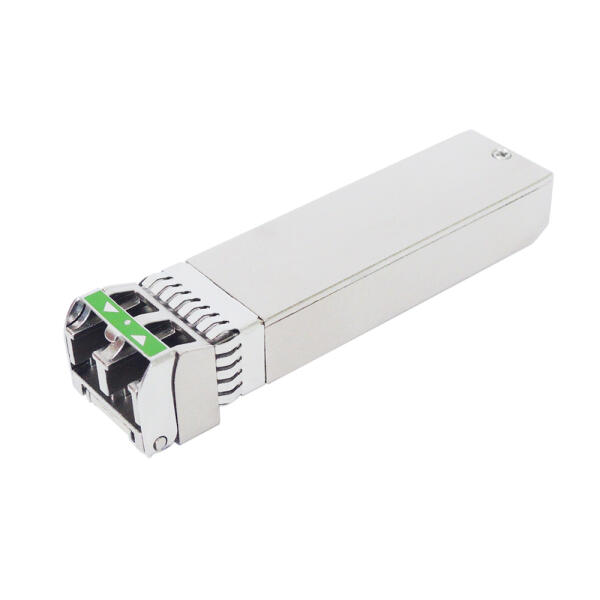

| FSPP-H7-DTU-10DQ | 25G | 50GHz DWDM MZM | Duplex LC | SM 10km | 0~70°C | SFP28-25G-DWDM-Tunable 10km |  | | FSPP-H7-DTU-10DQi | 25G | 50GHz DWDM MZM | Duplex LC | SM 10km | -40~85°C | SFP28-25G-DWDM-Tunable 10km,
I-Temp | |
| - 25GBASE-LR Ethernet @25.78G
- CPRI Option #10 @24.33G
- eCPRI 5G Mobile Networks
- DWDM Networks
| - Compatible with IEEE802.3cc 25GBASE-LR
- Compliant with CPRI option10
- Compliant with SFF-8402 SFP28 MSA
- Data Rate up to 25.78Gbps
- Built-in CDR on both Transmitter and Receiver
- Hot Pluggable
- 50GHz ITU Grid channel spacing with integrated wavelength locker and auto-tuning technology
- Monolithically integrated full C-band DWDM tunable transmitter
- APD receiver
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 10km over SM fiber
- Maximum power consumption 3W
- RoHS Compliant
| - |
