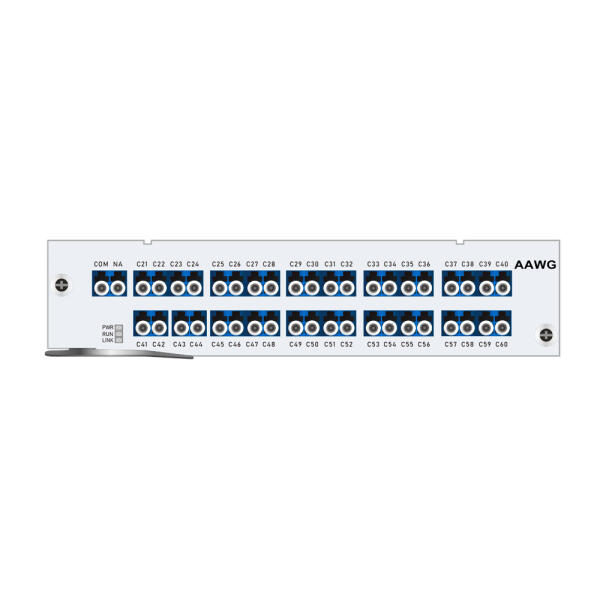

F520 AAWG DWDM 100GHz Mux-Demux
F520 Athermal AWG DWDM 100GHz Module
Features:
- Channel spacing 100GHz (0.8nm) up to MAX 40 channels can be multiplexed
- Channel Remark in WEB & NMS
- High integration
- High channel isolation
- Advanced network management feature : Support SNMP, CLI, WEB approach
- Adjacent isolation ≥25dB
- Non-adjacent isolation ≥35dB
- Low insertion loss ≤6dB, typical 4.5dB
- LC/UPC Connector
- Optional Support for OSC and Expand port
- Full graphical management
- Support all F520 Chassis
| Inquiry | Parameters | Min / Typ / Max | Download |
|---|---|---|---|
Channel Counts Channel Spacing Channel Center Wavelength Center Frequency Accuracy Maximum Optical Power Size Operating Temperature Storage Temperature Relative Humidity | 40 / 48 100GHz C -band nm ±0.05nm 23dBm 191(W) x 253(D) x 41(H)mm -10 ~ +60 ˚C -40 ~ +85 ˚C 5 to 95% maximum, non-condensing |  |
