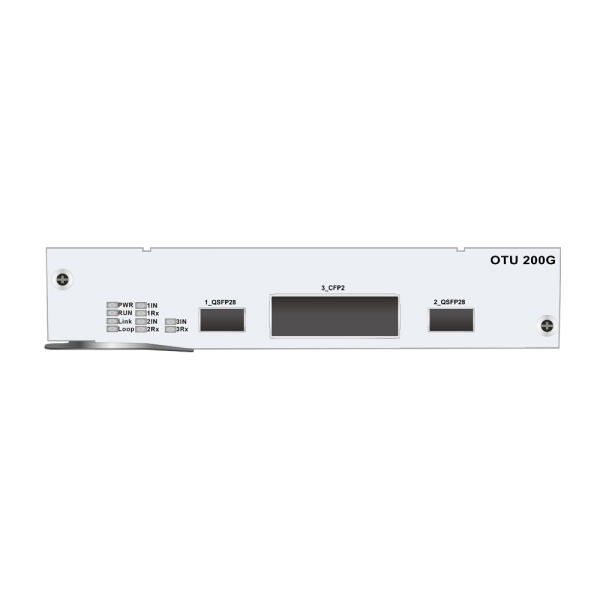

F520 200G OTU (200G Muxponder, QSFP28 to CFP2)
F520 200G Muxponder 2*100G QSFP28 to 1*100/200G CFP2
Features:
- Client side: 2*100G QSFP28
- Line side: 1*100/200G CFP2
- Support Line-side GFEC (G.709 RS-FEC), EFEC and SDFEC (depends on CFP2-DCO module)
- Support Client-side 100GE RS(528,514) FEC
- Support adjustable wavelength with CFP2-DCO module
- Support adjustable output power with CFP2-DCO module
- Support OSNR real-time monitoring with CFP2-DCO module
- Support port Loopback test
- Hot Swap
- Real-Time DDM
- Visual Graphic information interface
- Support ALS (Automatic Laser Shutdown)
- Support all F520 Chassis
| Inquiry | Parameter | Technical indicators | Download |
|---|---|---|---|
Data Rate CFP2-DCO DWDM Wavelength Interface Type│Client Side Interface Type│Line Side Management Power Consumption Size Operating Temperature Storage Temperature Relative Humidity (no condensation) | 100 / 200Gbps 1529.5 ~ 1565.50nm 2*100G QSFP28 1*100/200G CFP2 TELNET, SNMP, WEB < 50W 191(W) x 253(D) x 41(H)mm -10 ~ 60˚C -40 ~ 80˚C 5 ~ 95RH% |  |
