1U Rack-Mount EDFA

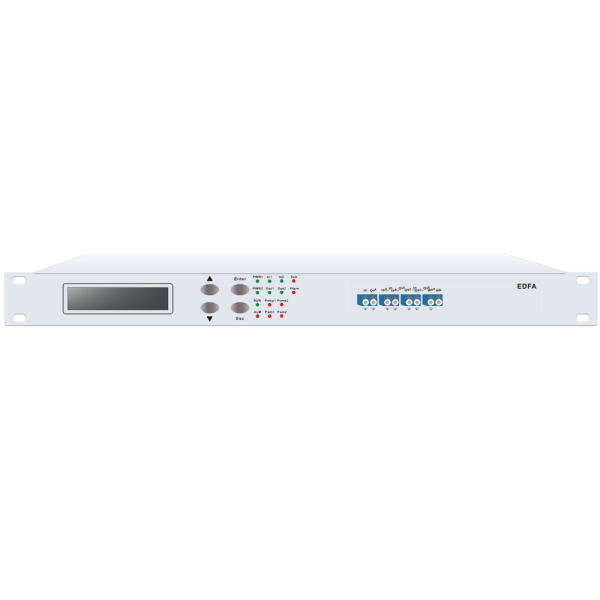

DWDM 1U Rack-Mount EDFA ( Erbium-Doped Optical Fiber Amplifier )

Features:

Fixed 1U Rack package, LC optical port
Low Noise Figure : typical 5dB, MAX 5.5dB
Multiple operating modes : AGC, APC, ACC
MON port for on-line monitoring optical power and OSNR
High performance transient response control to ensure Power, Gain stable without affecting existing signal
Optional OSC management channel for remote management
Support customized saturated Output Power up to +22dBm
Support customized Gain variety range 8 ~ 35dB
Support Red / Blue port for the single-fiber DWDM transmission systemt
Support Mid-Stage access for the insertion of a DCM or OADM unit without its inherent loss
Support LCD screen with Panel buttons control
Support SNMP, Web management
1+1 Pluggable Redundancy Power supply, AC / DC optional

Inquiry	Parameter	Min / Typ / Max	Download
	Operating Wavelength│Standard Operating Wavelength│Extended Power Consumption Size Operating Temperature Storage Temperature Relative Humidity	1528 ~ 1565nm 1528 ~ 1567nm ≤ 30W 442(W) x 250(D) x 44(H)mm -10 ~ +60°C -40 ~ +85°C 5 ~ 95RH%

Inquiry

Parameter

Min / Typ / Max

Download

Operating Wavelength│Standard

Operating Wavelength│Extended

Power Consumption

Size

Operating Temperature

Storage Temperature

Relative Humidity

1528 ~ 1565nm

1528 ~ 1567nm

≤ 30W

442(W) x 250(D) x 44(H)mm

-10 ~ +60°C

-40 ~ +85°C

5 ~ 95RH%
