| Inquiry | Specification | Applications | Features | Download |
| | | Part Number | Data Rate | Internal Attenuation | Power Consumption | Temperature | Remark | Datasheet |
|---|

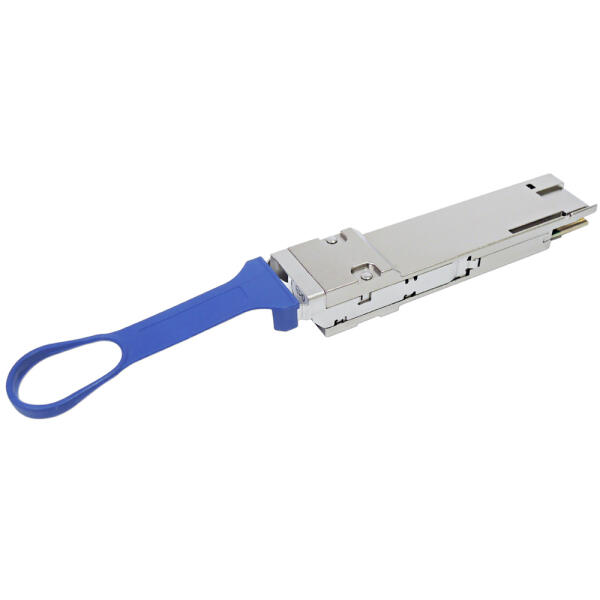

| FQDD-TX-XLB-xx-xx | 400G | 0~5dB | 0~5W | -40~85°C | QSFP-DD-400G-Loopback |  |
| - Board and System Level Testing
- System Test and Measurement
- Switch / Router Chamber Test
- Power Consumption Validation
| - Compliant with QSFP-DD MSA
- Compliant with IEEE 802.3bs 400GAUI-8 and 200GAUI-8 Interface
- Electrical Data Rate up to 56Gbps per Lane
- Hot Pluggable QSFP-DD footprint
- 2-wire interface for management
- Single 3.3V power supply
- Different Option for Internal Attenuation and Power
Consumption- RoHS compliant
| - |
| | | Part Number | Data Rate | Internal Attenuation | Power Consumption | Temperature | Remark | Datasheet |
|---|
| FQ56-SX-XLB-xx-xx | 200G | 0~5dB | 0~3.5W | -40~85°C | QSFP56-200G-Loopback | |
| - Board and System Level Testing
- System Test and Measurement
- Switch / Router Chamber Test
- Power Consumption Validation
| - Compliant with SFF-8665 QSFP56 / QSFP28 MSA
- Compliant with IEEE 802.3bs 200GAUI-4 and 802.3bm CAUI-4 Interface
- Electrical Data Rate up to 56Gbps per Lane
- Hot Pluggable QSFP56 footprint
- 2-wire interface for management
- Single 3.3V power supply
- Different Option for Internal Attenuation and Power Consumption
- RoHS compliant
| - |
| | | Part Number | Data Rate | Internal Attenuation | Power Consumption | Temperature | Remark | Datasheet |
|---|
| FQ28-KX-XLB-xx-xx | 100G | 0~5dB | 0~3.5W | -40~85°C | QSFP28-100G-Loopback | |
| - Board and System Level Testing
- System Test and Measurement
- Switch / Router Chamber Test
- Power Consumption Validation
| - Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- Electrical Data Rate up to 28Gbps per Lane
- Hot Pluggable QSFP28 footprint
- 2-wire interface for management
- Single 3.3V power supply
- Different Option for Internal Attenuation and Power Consumption
- RoHS compliant
| - |
| | | Part Number | Data Rate | Internal Attenuation | Power Consumption | Temperature | Remark | Datasheet |
|---|
| FQFP-IX-XLB-xx-xx | 40G | 0~5dB | 0~3.5W | -40~85°C | QSFP+ 40G-Loopback | |
| - Board and System Level Testing
- System Test and Measurement
- Switch / Router Chamber Test
- Power Consumption Validation
| - Compliant with SFF-8436 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- Electrical Data Rate up to 10.5Gbps per Lane
- Hot Pluggable QSFP+ footprint
- 2-wire interface for management
- Single 3.3V power supply
- Different Option for Internal Attenuation and Power
Consumption- RoHS compliant
| - |
| | | Part Number | Data Rate | Internal Attenuation | Power Consumption | Temperature | Remark | Datasheet |
|---|
| FSPP-NX-XLB-xx-xx | 25G | 0~5dB | 0~2.5W | -40~85°C | SFP28 25G-Loopback | |
| - Board and System Level Testing
- System Test and Measurement
- Switch / Router Chamber Test
- Power Consumption Validation
| - Compliant with SFF-8402 SFP28 MSA
- Electrical Data Rate up to 28Gbps
- Hot Pluggable
- 2-wire interface for management
- Single +3.3V power supply
- Different Option for Internal Attenuation and Power Consumption
- RoHS Compliant
| - |
| | | Part Number | Data Rate | Internal Attenuation | Power Consumption | Temperature | Remark | Datasheet |
|---|
| FSPP-HX-XLB-xx-xx | 10G | 0~5dB | 0~2.5W | -40~85°C | SFP+ 10G-Loopback | |
| - Board and System Level Testing
- System Test and Measurement
- Switch / Router Chamber Test
- Power Consumption Validation
| - Compliant with SFF-8431 SFP+ MSA
- Electrical Data Rate up to 10.5Gbps
- Hot Pluggable
- 2-wire interface for management
- Single +3.3V power supply
- Different Option for Internal Attenuation and Power Consumption
- RoHS Compliant
| - |
