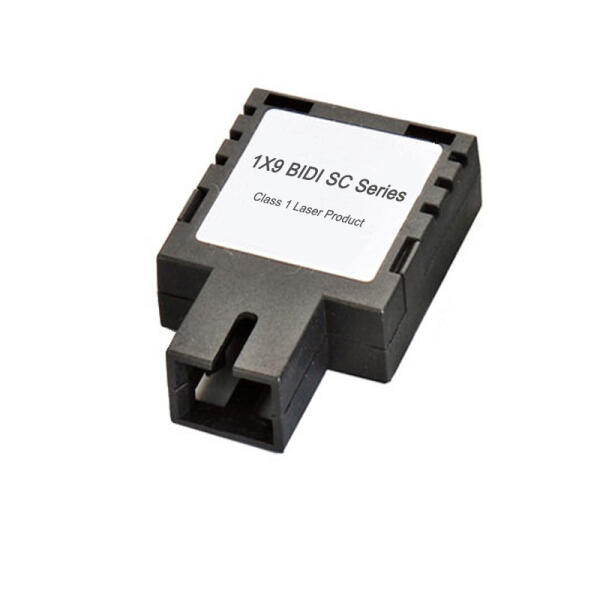

125M Fast Ethernet, 155M STM-1/OC-3 BiDi Single-Fiber 1X9 Transceiver
Simplex SC / FC / ST(plastic) / ST(metal), 1310nm / 1490nm / 1550nm, Multi-Mode / Single Mode, 2KM~120KM


Part NumberData RateWavelengthConnectorDistanceTemperatureRemarkDatasheet
F1X9-A2-M35-02P125/155MTx1310nm/Rx1550nmBiDi SCMM 2km0~70°C1X9-100BXM-U-SC
F1X9-A2-M53-02P125/155MTx1550nm/Rx1310nmBiDi SCMM 2km0~70°C1X9-100BXM-D-SC
F1X9-A2-S35-20P125/155MTx1310nm/Rx1550nmBiDi SCSM 20km0~70°C1X9-100BX20-U-SC
F1X9-A2-S35-20Pi125/155MTx1310nm/Rx1550nmBiDi SCSM 20km-40~85°C1X9-100BX20-U3-SC, SD=LVPECL, I-Temp
F1X9-A2-S53-20P125/155MTx1550nm/Rx1310nmBiDi SCSM 20km0~70°C1X9-100BX20-D-SC
F1X9-A2-S53-20Pi125/155MTx1550nm/Rx1310nmBiDi SCSM 20km-40~85°C1X9-100BX20-D5-SC, SD=LVPECL, I-Temp
F1X9-A2-S35-20B125/155MTx1310nm/Rx1550nmBiDi SCSM 20km0~70°C1X9-100BX20-U3-SC, SD=TTL
F1X9-A2-S35-20Bi125/155MTx1310nm/Rx1550nmBiDi SCSM 20km-40~85°C1X9-100BX20-U3-SC, SD=TTL, I-Temp
F1X9-A2-S53-20B125/155MTx1550nm/Rx1310nmBiDi SCSM 20km0~70°C1X9-100BX20-D5-SC, SD=TTL
F1X9-A2-S53-20Bi125/155MTx1550nm/Rx1310nmBiDi SCSM 20km-40~85°C1X9-100BX20-D5-SC, SD=TTL, I-Temp
F1X9-A2-S35-40P125/155MTx1310nm/Rx1550nmBiDi SCSM 40km0~70°C1X9-100BX40-U-SC
F1X9-A2-S35-40Pi125/155MTx1310nm/Rx1550nmBiDi SCSM 40km-40~85°C1X9-100BX40-U3-SC, SD=LVPECL, I-Temp
F1X9-A2-S53-40P125/155MTx1550nm/Rx1310nmBiDi SCSM 40km0~70°C1X9-100BX40-D-SC
F1X9-A2-S53-40Pi125/155MTx1550nm/Rx1310nmBiDi SCSM 40km-40~85°C1X9-100BX40-D5-SC, SD=LVPECL, I-Temp
F1X9-A2-S35-60P125/155MTx1310nm/Rx1550nmBiDi SCSM 60km0~70°C1X9-100BX60-U-SC
F1X9-A2-S53-60P125/155MTx1550nm/Rx1310nmBiDi SCSM 60km0~70°C1X9-100BX60-D-SC
F1X9-A2-S35-80P125/155MTx1310nm/Rx1550nmBiDi SCSM 80km0~70°C1X9-100BX80-U-SC
F1X9-A2-S53-80P125/155MTx1550nm/Rx1310nmBiDi SCSM 80km0~70°C1X9-100BX80-D-SC
F1X9-A2-S45-A2P125/155MTx1490nm/Rx1550nmBiDi SCSM 120km0~70°C1X9-100BX120-U-SC
F1X9-A2-S54-A2P125/155MTx1550nm/Rx1490nmBiDi SCSM 120km0~70°C1X9-100BX120-D-SC

FC Connector

Part NumberData RateWavelengthConnectorDistanceTemperatureRemark
F1X9-A4-M35-02P125/155MTx1310nm/Rx1550nmBiDi FCMM 2km0~70°C1X9-100BXM-U-FC
F1X9-A4-M53-02P125/155MTx1550nm/Rx1310nmBiDi FCMM 2km0~70°C1X9-100BXM-D-FC
F1X9-A4-S35-20P125/155MTx1310nm/Rx1550nmBiDi FCSM 20km0~70°C1X9-100BX20-U-FC
F1X9-A4-S53-20P125/155MTx1550nm/Rx1310nmBiDi FCSM 20km0~70°C1X9-100BX20-D-FC
F1X9-A4-S35-40P125/155MTx1310nm/Rx1550nmBiDi FCSM 40km0~70°C1X9-100BX40-U-FC
F1X9-A4-S53-40P125/155MTx1550nm/Rx1310nmBiDi FCSM 40km0~70°C1X9-100BX40-D-FC
F1X9-A4-S35-80P125/155MTx1310nm/Rx1550nmBiDi FCSM 80km0~70°C1X9-100BX80-U-FC
F1X9-A4-S53-80P125/155MTx1550nm/Rx1310nmBiDi FCSM 80km0~70°C1X9-100BX80-D-FC
F1X9-A4-S45-A2P125/155MTx1490nm/Rx1550nmBiDi FCSM 120km0~70°C1X9-100BX120-U-FC
F1X9-A4-S54-A2P125/155MTx1550nm/Rx1490nmBiDi FCSM 120km0~70°C1X9-100BX120-D-FC

ST Connector (plastic)

Part NumberData RateWavelengthConnectorDistanceTemperatureRemark
F1X9-A6-M35-02P125/155MTx1310nm/Rx1550nmBiDi STMM 2km0~70°C1X9-100BXM-U-ST
F1X9-A6-M53-02P125/155MTx1550nm/Rx1310nmBiDi STMM 2km0~70°C1X9-100BXM-D-ST
F1X9-A6-S35-20P125/155MTx1310nm/Rx1550nmBiDi STSM 20km0~70°C1X9-100BX20-U-ST
F1X9-A6-S53-20P125/155MTx1550nm/Rx1310nmBiDi STSM 20km0~70°C1X9-100BX20-D-ST
F1X9-A6-S35-40P125/155MTx1310nm/Rx1550nmBiDi STSM 40km0~70°C1X9-100BX40-U-ST
F1X9-A6-S53-40P125/155MTx1550nm/Rx1310nmBiDi STSM 40km0~70°C1X9-100BX40-D-ST
F1X9-A6-S35-60P125/155MTx1310nm/Rx1550nmBiDi STSM 60km0~70°C1X9-100BX60-U-ST
F1X9-A6-S53-60P125/155MTx1550nm/Rx1310nmBiDi STSM 60km0~70°C1X9-100BX60-D-ST
F1X9-A6-S35-80P125/155MTx1310nm/Rx1550nmBiDi STSM 80km0~70°C1X9-100BX80-U-ST
F1X9-A6-S53-80P125/155MTx1550nm/Rx1310nmBiDi STSM 80km0~70°C1X9-100BX80-D-ST
F1X9-A6-S45-A2P125/155MTx1490nm/Rx1550nmBiDi STSM 120km0~70°C1X9-100BX120-U-ST
F1X9-A6-S54-A2P125/155MTx1550nm/Rx1490nmBiDi STSM 120km0~70°C1X9-100BX120-D-ST

ST Connector (metal)

Part NumberData RateWavelengthConnectorDistanceTemperatureRemark
F1X9-A6-M35-02P125/155MTx1310nm/Rx1550nmBiDi STMM 2km0~70°C1X9-100BXM-U-ST
F1X9-A6-M53-02P125/155MTx1550nm/Rx1310nmBiDi STMM 2km0~70°C1X9-100BXM-D-ST
F1X9-A6-S35-20P125/155MTx1310nm/Rx1550nmBiDi STSM 20km0~70°C1X9-100BX20-U-ST
F1X9-A6-S53-20P125/155MTx1550nm/Rx1310nmBiDi STSM 20km0~70°C1X9-100BX20-D-ST
F1X9-A6-S35-40P125/155MTx1310nm/Rx1550nmBiDi STSM 40km0~70°C1X9-100BX40-U-ST
F1X9-A6-S53-40P125/155MTx1550nm/Rx1310nmBiDi STSM 40km0~70°C1X9-100BX40-D-ST
F1X9-A6-S35-60P125/155MTx1310nm/Rx1550nmBiDi STSM 60km0~70°C1X9-100BX60-U-ST
F1X9-A6-S53-60P125/155MTx1550nm/Rx1310nmBiDi STSM 60km0~70°C1X9-100BX60-D-ST
F1X9-A6-S35-80P125/155MTx1310nm/Rx1550nmBiDi STSM 80km0~70°C1X9-100BX80-U-ST
F1X9-A6-S53-80P125/155MTx1550nm/Rx1310nmBiDi STSM 80km0~70°C1X9-100BX80-D-ST
F1X9-A6-S45-A2P125/155MTx1490nm/Rx1550nmBiDi STSM 120km0~70°C1X9-100BX120-U-ST
F1X9-A6-S54-A2P125/155MTx1550nm/Rx1490nmBiDi STSM 120km0~70°C1X9-100BX120-D-ST

  • Fast Ethernet 100BASE-BX10 @125M
  • SDH STM-1 / SONET OC-3 @155M

  • Compliant with IEEE802.3ah 100BASE-LX10
  • Compliant with SONET OC-3 IR-1 and SDH STM-1 S1.1
  • Industry Standard 1x9 Footprint
  • 1310nm/1490nm/1550nm transmitter & 1310nm PIN receiver
  • Simplex SC/FC/ST(plastic)/ST(metal) connector
  • Single 3.3V or 5V Power Supply
  • DC-coupled Differential LVPECL inputs and outputs
  • LVTTL / TTL Signal Detection Output
  • Wave Solderable and Aqueous Washable
  • Link distance 2km~120km over MM/SM fiber
  • RoHS Compliant
