F520 EDFA (Optical Amplifier) - Two EDFA Module

F520 EDFA ( Erbium-Doped Fiber Amplifier ) Series

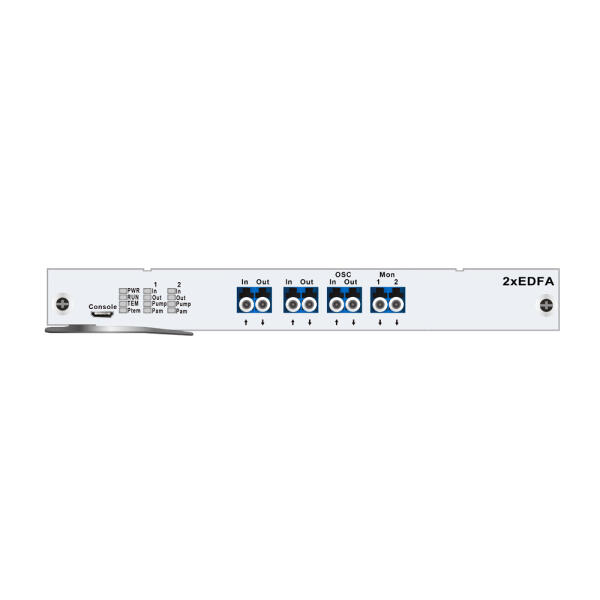

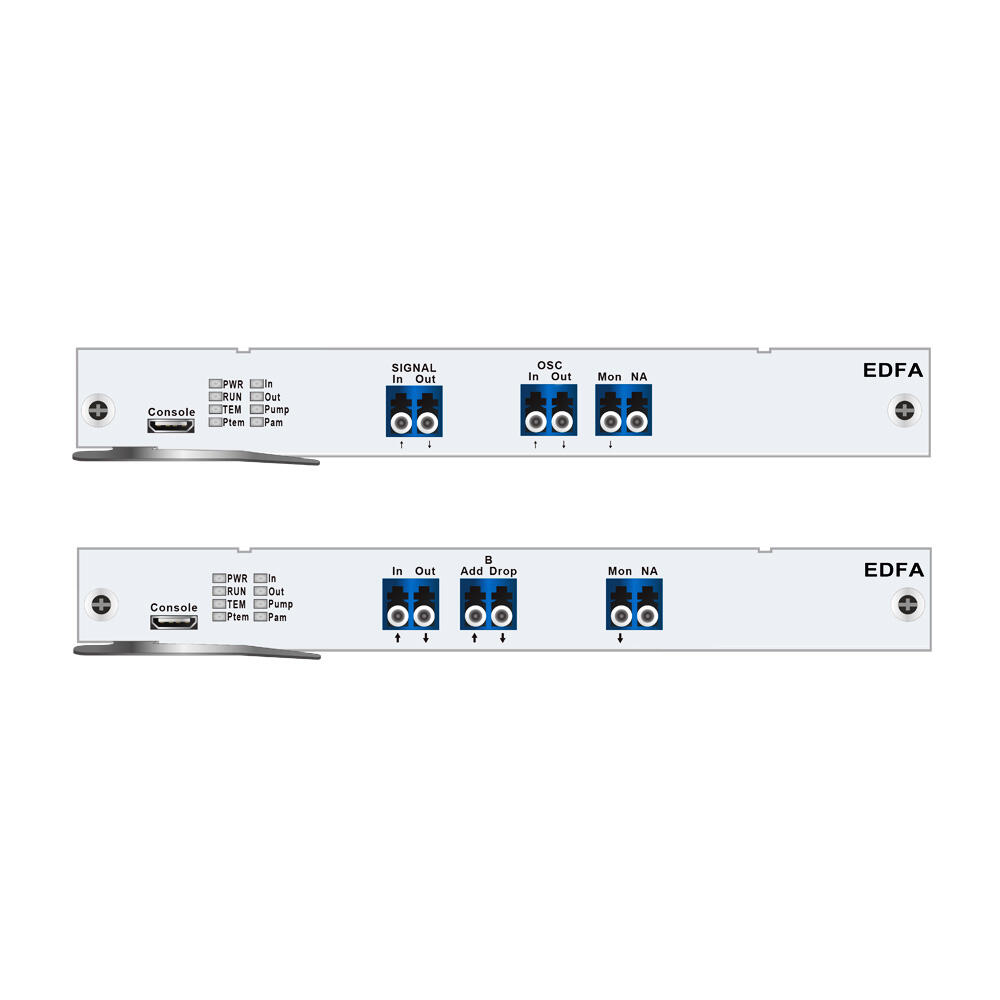

Two EDFA Module

Features:

Low noise figure : typical 5dB
Gain Flattening Filters (GFF) assure flat Gain (<1dB variance) over the entire amplified band
Multiple operating modes : AGC, APC, ACC
High performance transient response control to ensure Power, Gain stable without affecting existing signal
Support customized saturated Output Power range 13 ~ 24dBm
Support customized Gain variety range 8 ~ 40dB
Support Red / Blue port for single-fiber DWDM transmission system
Optional OSC management channel for remote management
MON own monitoring port, on-line monitoring optical power and OSNR
Support SNMP, Web, Console management
Support 4, 8, 20 slot chassis for different capacity requirement

Inquiry	Parameter	Min / Typ / Max	Download
	Operating Wavelength│Standard Operating Wavelength│Extended Power Consumption Size│2xEDFA model Size│4-slot chassis Size│8-slot chassis Size│20-slot chassis Operating Temperature Storage Temperature Relative Humidity (no condensation)	1528 ~ 1565nm 1528 ~ 1567nm ≤ 15W 191(W) x 253(D) x 20(H)mm 482.5(W) x 350(D) x 44.5(H)mm 482.5(W) x 350(D) x 89(H)mm 482.5(W) x 350(D) x 222.5(H)mm -10 ~ 60°C -40 ~ 85°C 5 ~ 95RH%

Inquiry

Parameter

Min / Typ / Max

Download

Operating Wavelength│Standard

Operating Wavelength│Extended

Power Consumption

Size│2xEDFA model

Size│4-slot chassis

Size│8-slot chassis

Size│20-slot chassis

Operating Temperature

Storage Temperature

Relative Humidity (no condensation)

1528 ~ 1565nm

1528 ~ 1567nm

≤ 15W

191(W) x 253(D) x 20(H)mm

482.5(W) x 350(D) x 44.5(H)mm

482.5(W) x 350(D) x 89(H)mm

482.5(W) x 350(D) x 222.5(H)mm

-10 ~ 60°C

-40 ~ 85°C

5 ~ 95RH%
