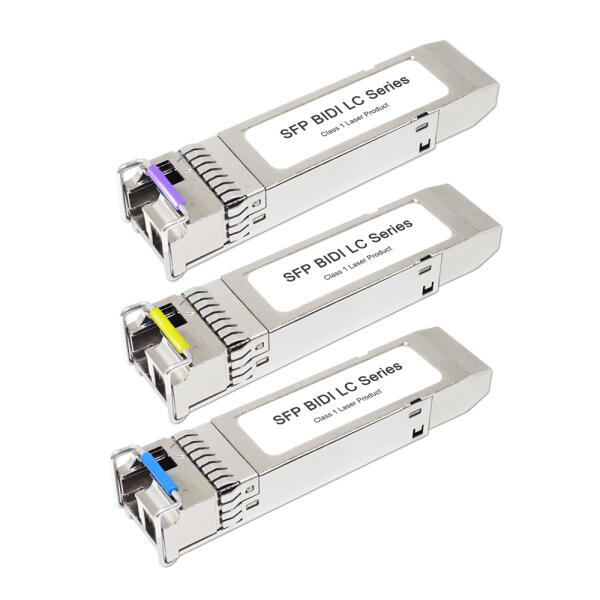

125M/155M SFP-BIDI
125M Fast Ethernet, 155M STM-1/OC-3 BiDi Single-Fiber SFP Transceiver
Hot Pluggable, BiDi LC / SC, 1310nm / 1490nm / 1550nm, Multi-Mode / Single Mode, 2KM~120KM
| Inquiry | Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Download |
|---|---|---|---|---|---|---|---|---|
FSFP-A8-M35-02D | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | MM 2km | 0~70°C | SFP-100BXM2-U3 | - | |
FSFP-A8-M53-02D | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | MM 2km | 0~70°C | SFP-100BXM2-D5 | - | |
FSFP-A8-S35-20D | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | SM 20km | 0~70°C | SFP-100BX20-U3, C-Temp |  | |
FSFP-A8-S35-20Di | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | SM 20km | -40~85°C | SFP-100BX20-U3, I-Temp | | |
FSFP-A8-S53-20D | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | SM 20km | 0~70°C | SFP-100BX20-D5, C-Temp | | |
FSFP-A8-S53-20Di | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | SM 20km | -40~85°C | SFP-100BX20-D5, I-Temp | | |
FSFP-A8-S35-40D | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | SM 40km | 0~70°C | SFP-100BX40-U3, C-Temp | | |
FSFP-A8-S35-40Di | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | SM 40km | -40~85°C | SFP-100BX40-U3, I-Temp | | |
FSFP-A8-S53-40D | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | SM 40km | 0~70°C | SFP-100BX40-D5, C-Temp | | |
FSFP-A8-S53-40Di | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | SM 40km | -40~85°C | SFP-100BX40-D5, I-Temp | | |
FSFP-A8-S35-60D | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | SM 60km | 0~70°C | SFP-100BX60-U3, C-Temp | | |
FSFP-A8-S35-60Di | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | SM 60km | -40~85°C | SFP-100BX60-U3, I-Temp | | |
FSFP-A8-S53-60D | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | SM 60km | 0~70°C | SFP-100BX60-D5, C-Temp | | |
FSFP-A8-S53-60Di | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | SM 60km | -40~85°C | SFP-100BX60-D5, I-Temp | | |
FSFP-A8-S45-80D | 125/155M | Tx1490nm / Rx1550nm | BiDi LC | SM 80km | 0~70°C | SFP-100BX80-U4, C-Temp | | |
FSFP-A8-S45-80Di | 125/155M | Tx1490nm / Rx1550nm | BiDi LC | SM 80km | -40~85°C | SFP-100BX80-U4, I-Temp | | |
FSFP-A8-S54-80D | 125/155M | Tx1550nm / Rx1490nm | BiDi LC | SM 80km | 0~70°C | SFP-100BX80-D5, C-Temp | | |
FSFP-A8-S54-80Di | 125/155M | Tx1550nm / Rx1490nm | BiDi LC | SM 80km | -40~85°C | SFP-100BX80-D5, I-Temp | | |
FSFP-A8-S45-A2D | 125/155M | Tx1490nm / Rx1550nm | BiDi LC | SM 120km | 0~70°C | SFP-100BX120-U4, C-Temp | | |
FSFP-A8-S45-A2Di | 125/155M | Tx1490nm / Rx1550nm | BiDi LC | SM 120km | -40~85°C | SFP-100BX120-U4, I-Temp | | |
FSFP-A8-S54-A2D | 125/155M | Tx1550nm / Rx1490nm | BiDi LC | SM 120km | 0~70°C | SFP-100BX120-D5, C-Temp | | |
FSFP-A8-S54-A2Di | 125/155M | Tx1550nm / Rx1490nm | BiDi LC | SM 120km | -40~85°C | SFP-100BX120-D5, I-Temp | | |
FSFP-A2-M35-02D | 125/155M | Tx1310nm / Rx1550nm | BiDi SC | MM 2km | 0~70°C | SFP-100BXM2-U3-SC | - | |
FSFP-A2-M53-02D | 125/155M | Tx1550nm / Rx1310nm | BiDi SC | MM 2km | 0~70°C | SFP-100BXM2-D5-SC | - | |
FSFP-A2-S35-20D | 125/155M | Tx1310nm / Rx1550nm | BiDi SC | SM 20km | 0~70°C | SFP-100BX20-U3-SC, C-Temp | | |
FSFP-A2-S35-20Di | 125/155M | Tx1310nm / Rx1550nm | BiDi SC | SM 20km | -40~85°C | SFP-100BX20-U3-SC, I-Temp | | |
FSFP-A2-S53-20D | 125/155M | Tx1550nm / Rx1310nm | BiDi SC | SM 20km | 0~70°C | SFP-100BX20-D5-SC, C-Temp | | |
FSFP-A2-S53-20Di | 125/155M | Tx1550nm / Rx1310nm | BiDi SC | SM 20km | -40~85°C | SFP-100BX20-D5-SC, I-Temp | | |
FSFP-A2-S35-40D | 125/155M | Tx1310nm / Rx1550nm | BiDi SC | SM 40km | 0~70°C | SFP-100BX40-U3-SC | - | |
FSFP-A2-S53-40D | 125/155M | Tx1550nm / Rx1310nm | BiDi SC | SM 40km | 0~70°C | SFP-100BX40-D5-SC | - | |
FSFP-A2-S35-60D | 125/155M | Tx1310nm / Rx1550nm | BiDi SC | SM 60km | 0~70°C | SFP-100BX60-U3-SC | - | |
FSFP-A2-S35-80D | 125/155M | Tx1310nm / Rx1550nm | BiDi SC | SM 80km | 0~70°C | SFP-100BX80-U3-SC | - | |
FSFP-A2-S53-80D | 125/155M | Tx1550nm / Rx1310nm | BiDi SC | SM 80km | 0~70°C | SFP-100BX80-D5-SC | - | |
FSFP-A2-S45-A2D | 125/155M | Tx1490nm / Rx1550nm | BiDi SC | SM 120km | 0~70°C | SFP-100BX120-U4-SC | - | |
FSFP-A2-S54-A2D | 125/155M | Tx1550nm / Rx1490nm | BiDi SC | SM 120km | 0~70°C | SFP-100BX120-D5-SC | - | |
FSFP-A2-S53-60D | 125/155M | Tx1550nm / Rx1310nm | BiDi SC | SM 60km | 0~70°C | SFP-100BX60-D5-SC | - |
