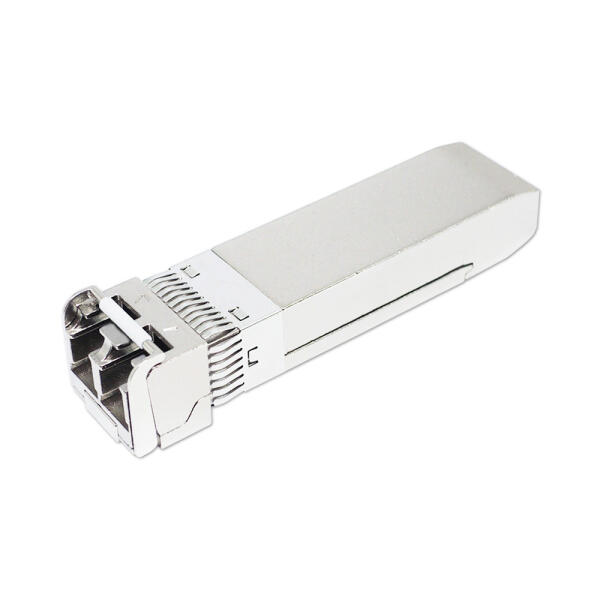

2.5G STM-16/OC-48 DWDM SFP Transceiver
Hot Pluggable, Duplex LC, DWDM DFB, Single Mode, 40KM~120KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FSFP-E7-Dxx-40D | 2.5G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 40km | 0~70°C | SFP-OC48-DWDMxx-40km | |
| FSFP-E7-Dxx-80D | 2.5G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 80km | 0~70°C | SFP-OC48-DWDMxx-80km | |
| FSFP-E7-Dxx-80Di | 2.5G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 80km | -40~85°C | SFP-OC48-DWDMxx-80km, I-Temp | |
| FSFP-E7-Dxx-A2D | 2.5G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 120km | 0~70°C | SFP-OC48-DWDMxx-120km | |
| FSFP-E7-Dxx-A2Di | 2.5G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 120km | -40~85°C | SFP-OC48-DWDMxx-120km, I-Temp | |
- SONET OC-48 / SDH STM-16 @2.5G
- DWDM Networks
- Compatible with SONET OC-48 LR-2 and SDH STM-16 L16.2
- Compliant with INF-8074i SFP MSA
- Hot Pluggable
- Cooled DWDM DFB laser transmitter
- 45 channels ITU-T 100GHz C-Band DWDM wavelength CH17~CH61 available
- APD receiver
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Maximum Power consumption 2.5W
- Link distance 40km~120km over SM fiber
- RoHS Compliant
