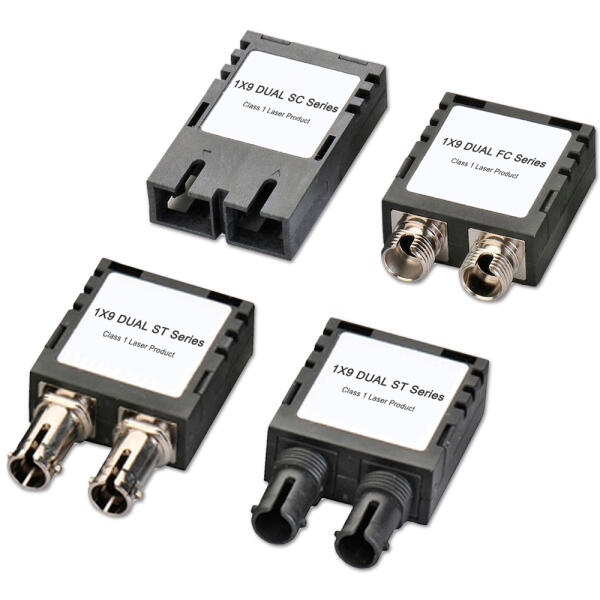

125M/155M 1X9-Duplex
| Inquiry | Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Download |
|---|---|---|---|---|---|---|---|---|
F1X9-A1-M85-02P | 125M/155M | 850nm | Duplex SC | MM 2km | 0~70°C | 1X9-100SX-SC | - | |
F1X9-A1-M85-02Pi | 125M/155M | 850nm | Duplex SC | MM 2km | -40~85°C | 1X9-100SX-SC, SD=LVPECL, I-Temp |  | |
F1X9-A1-M13-02P | 125M/155M | 1310nm | Duplex SC | MM 2km | 0~70°C | 1X9-100FX-SC | | |
F1X9-A1-M13-02Pi | 125M/155M | 1310nm | Duplex SC | MM 2km | -40~85°C | 1X9-100FX-SC, SD=LVPECL, I-Temp | | |
F1X9-A1-S13-20P | 125M/155M | 1310nm | Duplex SC | SM 20km | 0~70°C | 1X9-100LX20-SC | | |
F1X9-A1-S13-20Pi | 125M/155M | 1310nm | Duplex SC | SM 20km | -40~85°C | 1X9-100LX20-SC, I-Temp | | |
F1X9-A1-S13-30P | 125M/155M | 1310nm | Duplex SC | SM 30km | 0~70°C | 1X9-100LX30-SC | | |
F1X9-A1-S13-30Pi | 125M/155M | 1310nm | Duplex SC | SM 30km | -40~85°C | 1X9-100LX30-SC, SD=LVPECL, I-Temp | | |
F1X9-A1-S13-40Pi | 125M/155M | 1310nm | Duplex SC | SM 40km | -40~85°C | 1X9-100EX40-SC, SD=LVPECL, I-Temp | | |
F1X9-A1-S13-60P | 125M/155M | 1310nm | Duplex SC | SM 60km | 0~70°C | 1X9-100EX60-SC | | |
F1X9-A1-S13-60Pi | 125M/155M | 1310nm | Duplex SC | SM 60km | -40~85°C | 1X9-100EX60-SC, I-Temp | | |
F1X9-A1-S15-80P | 125M/155M | 1550nm | Duplex SC | SM 80km | 0~70°C | 1X9-100ZX-SC | | |
F1X9-A1-S15-80Pi | 125M/155M | 1550nm | Duplex SC | SM 80km | -40~85°C | 1X9-100ZX-SC, I-Temp | | |
F1X9-A1-S15-A0P | 125M/155M | 1550nm | Duplex SC | SM 100km | 0~70°C | 1X9-100ZX100-SC | | |
F1X9-A1-S15-A0Pi | 125M/155M | 1550nm | Duplex SC | SM 100km | -40~85°C | 1X9-100ZX100-SC, I-Temp | | |
F1X9-A1-S15-A2P | 125M/155M | 1550nm | Duplex SC | SM 120km | 0~70°C | 1X9-100EZX-SC | | |
F1X9-A1-S15-A2Pi | 125M/155M | 1550nm | Duplex SC | SM 120km | -40~85°C | 1X9-100EZX-SC, I-Temp | | |
F1X9-A3-M85-02P | 125M/155M | 850nm | Duplex FC | MM 2km | 0~70°C | 1X9-100SX-FC | - | |
F1X9-A3-M13-02P | 125M/155M | 1310nm | Duplex FC | MM 2km | 0~70°C | 1X9-100FX-FC | | |
F1X9-A3-M13-02Pi | 125M/155M | 1310nm | Duplex FC | MM 2km | -40~85°C | 1X9-100FX-FC, I-Temp | | |
F1X9-A3-S13-30P | 125M/155M | 1310nm | Duplex FC | SM 30km | 0~70°C | 1X9-100LX30-FC | | |
F1X9-A3-S13-30Pi | 125M/155M | 1310nm | Duplex FC | SM 30km | -40~85°C | 1X9-100LX30-FC, I-Temp | | |
F1X9-A3-S13-60P | 125M/155M | 1310nm | Duplex FC | SM 60km | 0~70°C | 1X9-100EX60-FC | | |
F1X9-A3-S13-60Pi | 125M/155M | 1310nm | Duplex FC | SM 60km | -40~85°C | 1X9-100EX60-FC, I-Temp | | |
F1X9-A3-S15-80P | 125M/155M | 1550nm | Duplex FC | SM 80km | 0~70°C | 1X9-100ZX-FC | - | |
F1X9-A3-S15-A0P | 125M/155M | 1550nm | Duplex FC | SM 100km | 0~70°C | 1X9-100ZX100-FC | | |
F1X9-A3-S15-A0Pi | 125M/155M | 1550nm | Duplex FC | SM 100km | -40~85°C | 1X9-100ZX100-FC, I-Temp | | |
F1X9-A3-S15-A2P | 125M/155M | 1550nm | Duplex FC | SM 120km | 0~70°C | 1X9-100ZX100-FC | | |
F1X9-A3-S15-A2Pi | 125M/155M | 1550nm | Duplex FC | SM 120km | -40~85°C | 1X9-100EZX-FC, I-Temp | | |
F1X9-A5-M85-02P | 125M/155M | 850nm | Duplex ST | MM 2km | 0~70°C | 1X9-100SX-ST | | |
F1X9-A5-M85-02Pi | 125M/155M | 850nm | Duplex ST | MM 2km | -40~85°C | 1X9-100SX-ST, I-Temp | | |
F1X9-A5-M13-02P | 125M/155M | 1310nm | Duplex ST | MM 2km | -40~85°C | 1X9-100FX-ST | | |
F1X9-A5-M13-02Pi | 125M/155M | 1310nm | Duplex ST | MM 2km | -40~85°C | 1X9-100FX-ST(Plastic), SD=LVPECL, I-Temp | | |
F1X9-A5-S13-30P | 125M/155M | 1310nm | Duplex ST | SM 30km | 0~70°C | 1X9-100LX30-ST | | |
F1X9-A5-S13-30Pi | 125M/155M | 1310nm | Duplex ST | SM 30km | -40~85°C | 1X9-100LX30-ST, I-Temp | | |
F1X9-A5-S13-60P | 125M/155M | 1310nm | Duplex ST | SM 60km | 0~70°C | 1X9-100EX60-ST | | |
F1X9-A5-S13-60Pi | 125M/155M | 1310nm | Duplex ST | SM 60km | -40~85°C | 1X9-100EX60-ST, I-Temp | | |
F1X9-A5-S15-80P | 125M/155M | 1550nm | Duplex ST | SM 80km | 0~70°C | 1X9-100ZX-ST | | |
F1X9-A5-S15-80Pi | 125M/155M | 1550nm | Duplex ST | SM 80km | -40~85°C | 1X9-100ZX-ST, I-Temp | | |
F1X9-A5-S15-A0P | 125M/155M | 1550nm | Duplex ST | SM 100km | 0~70°C | 1X9-100ZX100-ST | | |
F1X9-A5-S15-A0Pi | 125M/155M | 1550nm | Duplex ST | SM 100km | -40~85°C | 1X9-100ZX100-ST, I-Temp | | |
F1X9-A5-S15-A2P | 125M/155M | 1550nm | Duplex ST | SM 120km | 0~70°C | 1X9-100EZX-ST | | |
F1X9-A5-S15-A2Pi | 125M/155M | 1550nm | Duplex ST | SM 120km | -40~85°C | 1X9-100EZX-ST, I-Temp | | |
F1X9-AM-M85-02P | 125M/155M | 850nm | Duplex ST | MM 2km | 0~70°C | 1X9-100SX-ST | | |
F1X9-AM-M85-02Pi | 125M/155M | 850nm | Duplex ST | MM 2km | -40~85°C | 1X9-100SX-ST, I-Temp | | |
F1X9-AM-M13-02P | 125M/155M | 1310nm | Duplex ST | MM 2km | 0~70°C | 1X9-100FX-ST | | |
F1X9-AM-M13-02Pi | 125M/155M | 1310nm | Duplex ST | MM 2km | -40~85°C | 1X9-100FX-ST, I-Temp | | |
F1X9-AM-S13-30P | 125M/155M | 1310nm | Duplex ST | SM 30km | 0~70°C | 1X9-100LX30-ST | | |
F1X9-AM-S13-30Pi | 125M/155M | 1310nm | Duplex ST | SM 30km | -40~85°C | 1X9-100LX30-ST, I-Temp | | |
F1X9-AM-S13-60P | 125M/155M | 1310nm | Duplex ST | SM 60km | 0~70°C | 1X9-100EX60-ST | | |
F1X9-AM-S13-60Pi | 125M/155M | 1310nm | Duplex ST | SM 60km | -40~85°C | 1X9-100EX60-ST, I-Temp | | |
F1X9-AM-S15-80P | 125M/155M | 1550nm | Duplex ST | SM 80km | 0~70°C | 1X9-100ZX-ST | - | |
F1X9-AM-S15-A0P | 125M/155M | 1550nm | Duplex ST | SM 100km | 0~70°C | 1X9-100ZX100-ST | | |
F1X9-AM-S15-A0Pi | 125M/155M | 1550nm | Duplex ST | SM 100km | -40~85°C | 1X9-100ZX100-ST, I-Temp | | |
F1X9-AM-S15-A2P | 125M/155M | 1550nm | Duplex ST | SM 120km | 0~70°C | 1X9-100EZX-ST | | |
F1X9-AM-S15-A2Pi | 125M/155M | 1550nm | Duplex ST | SM 120km | -40~85°C | 1X9-100EZX-ST, I-Temp | |
