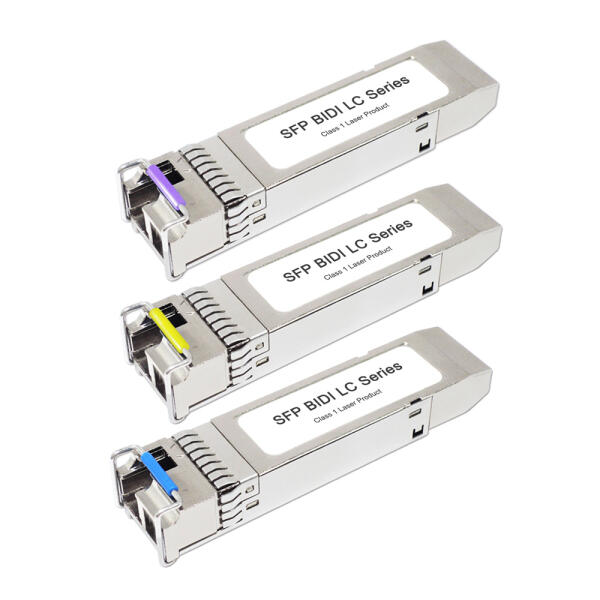

1.25G SFP-BIDI

1.25G SFP-BIDI
1.25G SFP-BIDI

1.25G SFP 1000BX-U/D Transceiver
Hot Pluggable, BiDi LC, 850nm / 1310nm / 1550nm, Multi-Mode / Single Mode, 550M~140KM

Inquiry Part Number Data Rate Wavelength Connector Distance Temperature Remark Download

FSFP-C8-M35-X5D

1.25G

Tx1310nm / Rx1550nm

BiDi LC

MM 550m

0~70°C

SFP-1000BXM-U3, C-Temp

FSFP-C8-M35-X5Di

1.25G

Tx1310nm / Rx1550nm

BiDi LC

MM 550m

-40~85°C

SFP-1000BXM-U3, I-Temp

FSFP-C8-M53-X5D

1.25G

Tx1550nm / Rx1310nm

BiDi LC

MM 550m

0~70°C

SFP-1000BXM-D5, C-Temp

FSFP-C8-M53-X5Di

1.25G

Tx1550nm / Rx1310nm

BiDi LC

MM 550m

-40~85°C

SFP-1000BXM-D5, I-Temp

FSFP-C8-S35-02D

1.25G

Tx1310nm / Rx1550nm

BiDi LC

SM 2km

0~70°C

SFP-1000BX2-U3, C-Temp

FSFP-C8-S35-02Di

1.25G

Tx1310nm / Rx1550nm

BiDi LC

SM 2km

-40~85°C

SFP-1000BX2-U3, I-Temp

FSFP-C8-S53-02D

1.25G

Tx1550nm / Rx1310nm

BiDi LC

SM 2km

0~70°C

SFP-1000BX2-D5, C-Temp

FSFP-C8-S53-02Di

1.25G

Tx1550nm / Rx1310nm

BiDi LC

SM 2km

-40~85°C

SFP-1000BX2-D5, I-Temp

FSFP-C8-S34-10D

1.25G

Tx1310nm / Rx1490nm

BiDi LC

SM 10km

0~70°C

SFP-1000BX10-U3, C-Temp

FSFP-C8-S34-10Di

1.25G

Tx1310nm / Rx1490nm

BiDi LC

SM 10km

-40~85°C

SFP-1000BX10-U3, I-Temp

FSFP-C8-S43-10D

1.25G

Tx1490nm / Rx1310nm

BiDi LC

SM 10km

0~70°C

SFP-1000BX10-D4, C-Temp

FSFP-C8-S43-10Di

1.25G

Tx1490nm / Rx1310nm

BiDi LC

SM 10km

-40~85°C

SFP-1000BX10-D4, I-Temp

FSFP-C8-S34-20D

1.25G

Tx1310nm / Rx1490nm

BiDi LC

SM 20km

0~70°C

SFP-1000BX20-U3, C-Temp

FSFP-C8-S34-20Di

1.25G

Tx1310nm / Rx1490nm

BiDi LC

SM 20km

-40~85°C

SFP-1000BX20-U3, I-Temp

FSFP-C8-S43-20D

1.25G

Tx1490nm / Rx1310nm

BiDi LC

SM 20km

0~70°C

SFP-1000BX20-D4, C-Temp

FSFP-C8-S43-20Di

1.25G

Tx1490nm / Rx1310nm

BiDi LC

SM 20km

-40~85°C

SFP-1000BX20-D4, I-Temp

FSFP-C8-S35-20D

1.25G

Tx1310nm / Rx1550nm

BiDi LC

SM 20km

0~70°C

SFP-1000BX20-U3, C-Temp

FSFP-C8-S35-20Di

1.25G

Tx1310nm / Rx1550nm

BiDi LC

SM 20km

-40~85°C

SFP-1000BX20-U3, I-Temp

FSFP-C8-S53-20D

1.25G

Tx1550nm / Rx1310nm

BiDi LC

SM 20km

0~70°C

SFP-1000BX20-D5, C-Temp

FSFP-C8-S53-20Di

1.25G

Tx1550nm / Rx1310nm

BiDi LC

SM 20km

-40~85°C

SFP-1000BX20-D5, I-Temp

FSFP-C8-S34-40D

1.25G

Tx1310nm / Rx1490nm

BiDi LC

SM 40km

0~70°C

SFP-1000BX40-U3, C-Temp

FSFP-C8-S34-40Di

1.25G

Tx1310nm / Rx1490nm

BiDi LC

SM 40km

-40~85°C

SFP-1000BX40-U3, I-Temp

FSFP-C8-S43-40D

1.25G

Tx1490nm / Rx1310nm

BiDi LC

SM 40km

0~70°C

SFP-1000BX40-D4, C-Temp

FSFP-C8-S43-40Di

1.25G

Tx1490nm / Rx1310nm

BiDi LC

SM 40km

-40~85°C

SFP-1000BX40-D4, I-Temp

FSFP-C8-S35-40D

1.25G

Tx1310nm / Rx1550nm

BiDi LC

SM 40km

0~70°C

SFP-1000BX40-U3, C-Temp

FSFP-C8-S35-40Di

1.25G

Tx1310nm / Rx1550nm

BiDi LC

SM 40km

-40~85°C

SFP-1000BX40-U3, I-Temp

FSFP-C8-S53-40D

1.25G

Tx1550nm / Rx1310nm

BiDi LC

SM 40km

0~70°C

SFP-1000BX40-D5, C-Temp

FSFP-C8-S53-40Di

1.25G

Tx1550nm / Rx1310nm

BiDi LC

SM 40km

-40~85°C

SFP-1000BX40-D5, I-Temp

FSFP-C8-S35-60D

1.25G

Tx1310nm / Rx1550nm

BiDi LC

SM 60km

0~70°C

SFP-1000BX60-U3, C-Temp

FSFP-C8-S35-60Di

1.25G

Tx1310nm / Rx1550nm

BiDi LC

SM 60km

-40~85°C

SFP-1000BX60-U3, I-Temp

FSFP-C8-S53-60D

1.25G

Tx1550nm / Rx1310nm

BiDi LC

SM 60km

0~70°C

SFP-1000BX60-D5, C-Temp

FSFP-C8-S53-60Di

1.25G

Tx1550nm / Rx1310nm

BiDi LC

SM 60km

-40~85°C

SFP-1000BX60-D5, I-Temp

FSFP-C8-S45-80D

1.25G

Tx1490nm / Rx1550nm

BiDi LC

SM 80km

0~70°C

SFP-1000BX80-U4, C-Temp

FSFP-C8-S45-80Di

1.25G

Tx1490nm / Rx1550nm

BiDi LC

SM 80km

-40~85°C

SFP-1000BX80-U4, I-Temp

FSFP-C8-S54-80D

1.25G

Tx1550nm / Rx1490nm

BiDi LC

SM 80km

0~70°C

SFP-1000BX80-D5, C-Temp

FSFP-C8-S54-80Di

1.25G

Tx1550nm / Rx1490nm

BiDi LC

SM 80km

-40~85°C

SFP-1000BX80-D5, I-Temp

FSFP-C8-S45-A0D

1.25G

Tx1490nm / Rx1550nm

BiDi LC

SM 100km

0~70°C

SFP-1000BX100-U4, C-Temp

FSFP-C8-S45-A0Di

1.25G

Tx1490nm / Rx1550nm

BiDi LC

SM 100km

-40~85°C

SFP-1000BX100-U4, I-Temp

FSFP-C8-S54-A0D

1.25G

Tx1550nm / Rx1490nm

BiDi LC

SM 100km

0~70°C

SFP-1000BX100-D5, C-Temp

FSFP-C8-S54-A0Di

1.25G

Tx1550nm / Rx1490nm

BiDi LC

SM 100km

-40~85°C

SFP-1000BX100-D5, I-Temp

FSFP-C8-S45-A2D

1.25G

Tx1490nm / Rx1550nm

BiDi LC

SM 120km

0~70°C

SFP-1000BX120-U4, C-Temp

FSFP-C8-S45-A2Di

1.25G

Tx1490nm / Rx1550nm

BiDi LC

SM 120km

-40~85°C

SFP-1000BX120-U4, I-Temp

FSFP-C8-S54-A2D

1.25G

Tx1550nm / Rx1490nm

BiDi LC

SM 120km

0~70°C

SFP-1000BX120-D5, C-Temp

FSFP-C8-S54-A2Di

1.25G

Tx1550nm / Rx1490nm

BiDi LC

SM 120km

-40~85°C

SFP-1000BX120-D5, I-Temp

FSFP-C8-S45-A4D

1.25G

Tx1490nm / Rx1550nm

BiDi LC

SM 140km

0~70°C

SFP-1000BX140-U4, C-Temp

FSFP-C8-S45-A4Di

1.25G

Tx1490nm / Rx1550nm

BiDi LC

SM 140km

-40~85°C

SFP-1000BX140-U4, I-Temp

FSFP-C8-S54-A4D

1.25G

Tx1550nm / Rx1490nm

BiDi LC

SM 140km

0~70°C

SFP-1000BX140-D5, C-Temp

FSFP-C8-S54-A4Di

1.25G

Tx1550nm / Rx1490nm

BiDi LC

SM 140km

-40~85°C

SFP-1000BX140-D5, I-Temp

FSFP-C8-C51-A4D

1.25G

Tx1510nm / Rx1590nm

BiDi LC

SM 140km

0~70°C

SFP-1000BX140-U51

 -

FSFP-C8-C59-A4D

1.25G

Tx1590nm / Rx1510nm

BiDi LC

SM 140km

0~70°C

SFP-1000BX140-D59

 -

FSFP-C2-S35-20D

1.25G

Tx1310nm / Rx1550nm

BiDi SC

SM 20km

0~70°C

SFP-1000BX20-U3-SC, C-Temp

FSFP-C2-S35-20Di

1.25G

Tx1310nm / Rx1550nm

BiDi SC

SM 20km

-40~85°C

SFP-1000BX20-U3-SC, I-Temp

FSFP-C2-S53-20D

1.25G

Tx1550nm / Rx1310nm

BiDi SC

SM 20km

0~70°C

SFP-1000BX20-D5-SC, C-Temp

FSFP-C2-S53-20Di

1.25G

Tx1550nm / Rx1310nm

BiDi SC

SM 20km

-40~85°C

SFP-1000BX20-D5-SC, I-Temp

FSFP-C2-S35-40D

1.25G

Tx1310nm / Rx1550nm

BiDi SC

SM 40km

0~70°C

SFP-1000BX40-U3-SC

 -

FSFP-C2-S53-40D

1.25G

Tx1550nm / Rx1310nm

BiDi SC

SM 40km

0~70°C

SFP-1000BX40-D5-SC

 -

FSFP-C2-S35-60D

1.25G

Tx1310nm / Rx1550nm

BiDi SC

SM 60km

0~70°C

SFP-1000BX60-U3-SC

 -

FSFP-C2-S53-60D

1.25G

Tx1550nm / Rx1310nm

BiDi SC

SM 60km

0~70°C

SFP-1000BX60-D5-SC

 -

FSFP-C2-S45-80D

1.25G

Tx1490nm / Rx1550nm

BiDi SC

SM 80km

0~70°C

SFP-1000BX80-U4-SC

 -

FSFP-C2-S54-80D

1.25G

Tx1550nm / Rx1490nm

BiDi SC

SM 80km

0~70°C

SFP-1000BX80-D5-SC

 -

FSFP-C2-S45-A2D

1.25G

Tx1490nm / Rx1550nm

BiDi SC

SM 120km

0~70°C

SFP-1000BX120-U4-SC

 -

FSFP-C2-S54-A2D

1.25G

Tx1550nm / Rx1490nm

BiDi SC

SM 120km

0~70°C

SFP-1000BX120-D5-SC

 -
