2.5G SFP

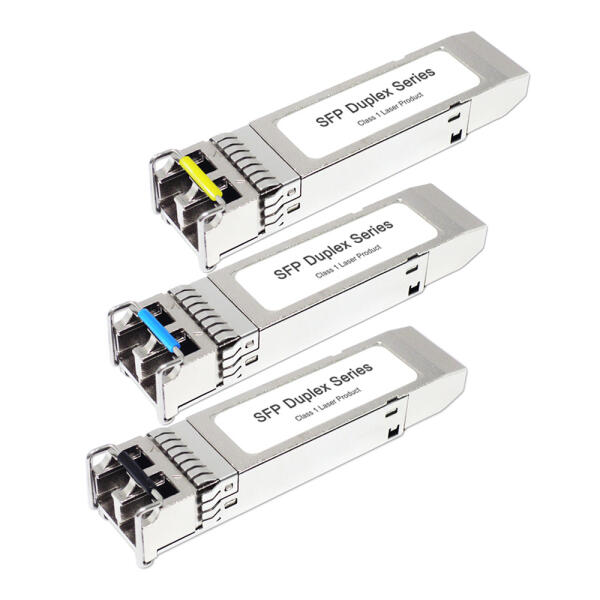

2.5G SFP-Duplex
2.5G SFP-Duplex

2.5G SFP-Duplex

2.5G STM-16/OC-48 SFP Transceiver
Hot Pluggable, Duplex LC, 850nm / 1310nm / 1550nm, Multi-Mode / Single Mode, 300M~140KM


Part NumberData RateWavelengthConnectorDistanceTemperatureRemarkDatasheet
FSFP-E7-M85-X3D2.5G850nmDuplex LCOM1 300m0~70°CSFP-OC48-MM300
FSFP-E7-M85-X3Di2.5G850nmDuplex LCOM1 300m-40~85°CSFP-OC48-MM300, I-Temp
FSFP-E7-M85-X3DM2.5G850nmDuplex LCOM1 300m0~70°CSFP-OC48-MM300, Multi-Rate
FSFP-E7-M85-X3DMi2.5G850nmDuplex LCOM1 300m-40~85°CSFP-OC48-MM300, Multi-Rate, I-Temp
FSFP-E7-S13-02D2.5G1310nmDuplex LCSM 2km0~70°CSFP-OC48-02km
FSFP-E7-S13-02Di2.5G1310nmDuplex LCSM 2km-40~85°CSFP-OC48-02km, I-Temp
FSFP-E7-S13-20D2.5G1310nmDuplex LCSM 20km0~70°CSFP-OC48-20km
FSFP-E7-S13-20Di2.5G1310nmDuplex LCSM 20km-40~85°CSFP-OC48-20km, I-Temp
FSFP-E7-S13-20DM2.5G1310nmDuplex LCSM 20km0~70°CSFP-OC48-20km, Multi-Rate
FSFP-E7-S13-20DMi2.5G1310nmDuplex LCSM 20km-40~85°CSFP-OC48-20km, Multi-Rate, I-Temp
FSFP-E7-S13-40D2.5G1310nmDuplex LCSM 40km0~70°CSFP-OC48-40km
FSFP-E7-S13-40Di2.5G1310nmDuplex LCSM 40km-40~85°CSFP-OC48-40km, I-Temp
FSFP-E7-S15-40D2.5G1550nmDuplex LCSM 40km0~70°CSFP-OC48-40km
FSFP-E7-S15-40Di2.5G1550nmDuplex LCSM 40km-40~85°CSFP-OC48-40km, I-Temp
FSFP-E7-S13-60D2.5G1310nmDuplex LCSM 60km0~70°CSFP-OC48-60km
FSFP-E7-S13-60Di2.5G1310nmDuplex LCSM 60km-40~85°CSFP-OC48-60km, I-Temp
FSFP-E7-S15-80D2.5G1550nmDuplex LCSM 80km0~70°CSFP-OC48-80km
FSFP-E7-S15-80Di2.5G1550nmDuplex LCSM 80km-40~85°CSFP-OC48-80km, I-Temp
FSFP-E7-S15-A0D2.5G1550nmDuplex LCSM 100km0~70°CSFP-OC48-100km
FSFP-E7-S15-A0Di2.5G1550nmDuplex LCSM 100km-40~85°CSFP-OC48-100km, I-Temp
FSFP-E7-S15-A0DM2.5G1550nmDuplex LCSM 100km0~70°CSFP-OC48-100km, Multi-Rate
FSFP-E7-S15-A0DMi2.5G1550nmDuplex LCSM 100km-40~85°CSFP-OC48-100km, Multi-Rate, I-Temp
FSFP-E7-S15-A2D2.5G1550nmDuplex LCSM 120km0~70°CSFP-OC48-120km
FSFP-E7-S15-A2Di2.5G1550nmDuplex LCSM 120km-40~85°CSFP-OC48-120km, I-Temp
FSFP-E7-S15-A2DM2.5G1550nmDuplex LCSM 120km0~70°SFP-OC48-120km, Multi-Rate
FSFP-E7-S15-A2DMi2.5G1550nmDuplex LCSM 120km-40~85°CSFP-OC48-120km, Multi-Rate, I-Temp
FSFP-E7-S15-A4D2.5G1550nmDuplex LCSM 140km0~70°CSFP-OC48-140km

  • SONET OC-48 / SDH STM-16 @2.5G

  • Compatible with SONET OC-48 SR and SDH STM-16 I-16
  • Compliant with INF-8074i SFP MSA
  • Hot Pluggable
  • 850nm/1310nm/1550nm laser transmitter
  • Duplex LC connector
  • 2-wire interface for management and diagnostic monitor compliant with SFF-8472
  • Single +3.3V power supply
  • Link distance 300m~140km over MM//SM fiber
  • RoHS Compliant
